EUEU-Sections (hot-rolled)



UPN Section

European standard U channels
Dimensions: DIN 1026-1: 2000
Tolerances: EN 10279: 2000
Surface Conditiones: EN 10163-3

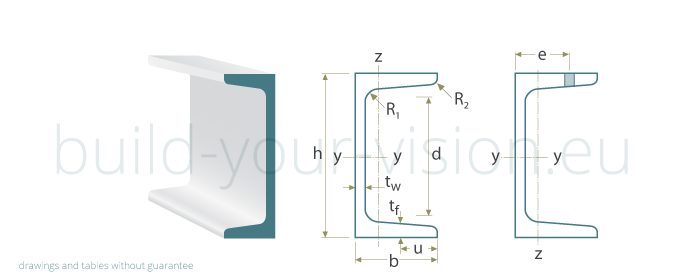

Flange slope for h ≤ 300 = 8% [ u = b/2 ] for h > 300 = 5% [ u = (b-tw)/2 ]

DISCLAIMER: Tables, figures, drawings and all information on this page have been carefully researched but not been checked by an independant person/institution and are provided without any liability. All obligation is excluded due to faulty, incomplete or outdated information. Please consult your technical staff and/or your appropriate standardisation institute.

Designation Nominal
Weight
1m		 Dimensions Cross-
section
Area		 Dimensions for Detailing Surfaces
  W h b tw tf R1 R2 A d ∅ emin emax AL AG
  kg/m mm mm mm mm mm mm cm2 mm   mm mm m2/m m2/t

UPN 80 8,64 80 45 6,0 8,0 8,0 4,0 11,0 47 - - - 0,312 37,10
UPN 100 10,6 100 50 6,0 8,5 8,5 4,5 13,5 64 - - - 0,372 35,10
UPN 120 13,4 120 55 7,0 9,0 9,0 4,5 17,0 82 - - - 0,434 32,52
UPN 140 16,0 140 60 7,0 10,0 10,0 5,0 20,4 98 M 12 33 37 0,489 30,54
UPN 160 18,8 160 65 7,5 10,5 10,5 5,5 24,0 115 M 12 34 42 0,546 28,98
UPN 180 22,0 180 70 8,0 11,0 11,0 5,5 28,0 133 M 16 38 41 0,611 27,80
UPN 200 25,3 200 75 8,5 11,5 11,5 6,0 32,2 151 M 16 39 46 0,661 26,15
UPN 220 29,4 220 80 9,0 12,5 12,5 6,5 37,4 167 M 16 40 51 0,718 24,46
UPN 240 33,2 240 85 9,5 13,0 13,0 6,5 42,3 184 M 20 46 50 0,775 23,34
UPN 260 37,9 260 90 10,0 14,0 14,0 7,0 48,3 200 M 22 50 52 0,834 22,00
UPN 280 41,8 280 95 10,0 15,0 15,0 7,5 53,3 216 M 22 52 57 0,890 21,27
UPN 300 46,2 300 100 10,0 16,0 16,0 8,0 58,8 232 M 24 55 59 0,950 20,58
UPN 320 59,5 320 100 14,0 17,5 17,5 8,8 75,8 246 M 22 58 62 0,982 16,50
UPN 350 60,6 350 100 14,0 16,0 16,0 8,0 77,3 282 M 22 56 62 1,050 17,25
UPN 380 63,1 380 102 13,5 16,0 16,0 8,0 80,4 313 M 24 59 60 1,110 17,59
UPN 400 71,8 400 110 14,0 18,0 18,0 9,0 91,5 324 M 27 61 62 1,180 16,46



UPN Section .dwg/.dxf files

Before downloading please read our disclaimer at the top of the page. Downloads and use of any files provided here without any liability and at your own risk. Files provided here should not be used without competent professional examination by a licensed engineer.
CAD files were created with nanoCAD 5.

UPN 80

UPN 100

UPN 120

UPN 140

UPN 160

UPN 180

UPN 200

UPN 220

UPN 240

UPN 260

UPN 280

UPN 300

UPN 320

UPN 350

UPN 380

UPN 400

All files were created carefully but it is not possible to exclude all errors.
We would be grateful to you, if you inform us about mistakes you might have found. Thank you.
